Modular Patient Monitor E12

Short Description Model: E12

  • Display: 12 inch TFT sreen
  • Parameter:Spo2, Pr, Nibp, ECG, Resp, Temp
  • Optional: Etco2, Nellcor Spo2, 2-IBP, Recorder, Touch Screen, Trolley, Wall Mount
  • Power requirements: AC: 100 ~ 240V, 50Hz/60Hz
  • DC: Built-in rechargeable 11.1V 24wh Li-ion battery
  • Orginal: Jiangsu, China
  • Cetification: CE, ISO13485, FSC, ISO9001


  • Eight parameters (PR, TEMP, IBP, ETCO2, RESP, SPO2, NIBP, and Independent ECG) and a fully independent module (Nellcor + Independent ECG).
  • Patient monitor that is modular and adaptable to various monitoring needs.
  • Adaptable operation of dual IBP and ETCO2 functionalities.
  • 12.1-inch color LCD touch panel with multi-language compatibility and multi-lead, 8-channel waveform display on the screen Selectable full touch screen for more user-friendly operation.
  • function for managing patient information input.
  • 400 NIBP groupings, 6000 seconds of ECG waveform recall, 60 alarm event records, and a stored 7-day trend chart.
  • Integrated large capacity (4 hours) lithium battery for power outages or patient transfers in an emergency.
  • Real-time analysis of S-T segments and pacemaker identification.
  • Support wired or wireless central monitoring systems, three monitoring modes for surgery, diagnostic, and monitoring.
  • High capacity (4 hours) built-in lithium battery for patient transfers or emergency power outages.

Smart Solution

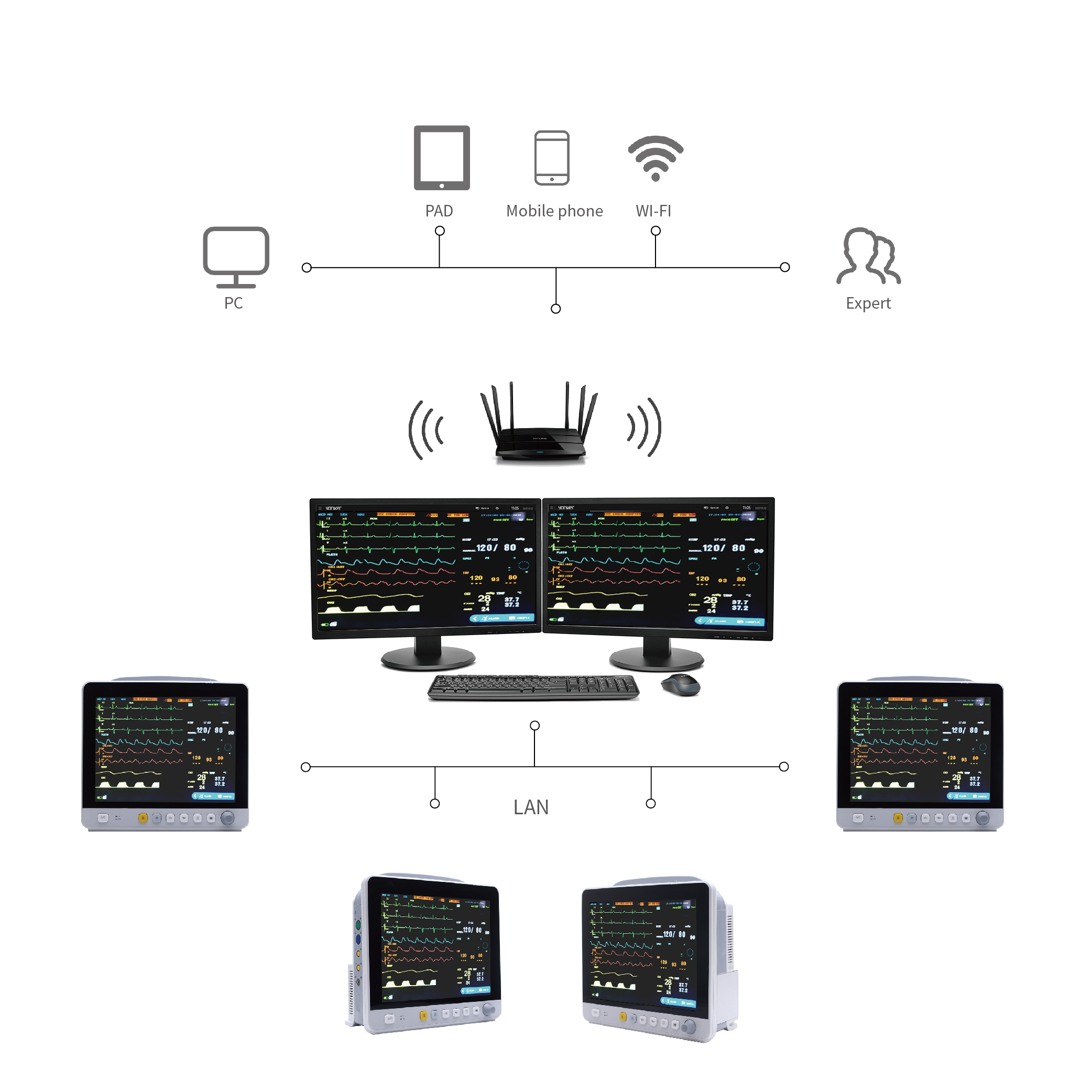

E12中央监护系统_画板 1

  • Integration of wireless technology with central monitoring
  • You can observe up to 240 hours of valuable information with station Dynamic trends.
  • There are 16 monitors on one screen with 8 tracks each.
  • On a single platform, view up to 32 beds in real time.
  • View and control patient data before, during, and after the hospital, anywhere at any time.





  1. Spo2 sensor & 1 piece of extended cable
  2. One ECG cable
  3. One piece of Cuff and Tube
  4. The temperature probe
  5. 1 piece Power Cbale Line
  6. One Piece Ground Line
  7. User Guide: 1 item
